Pattyn Razim SL

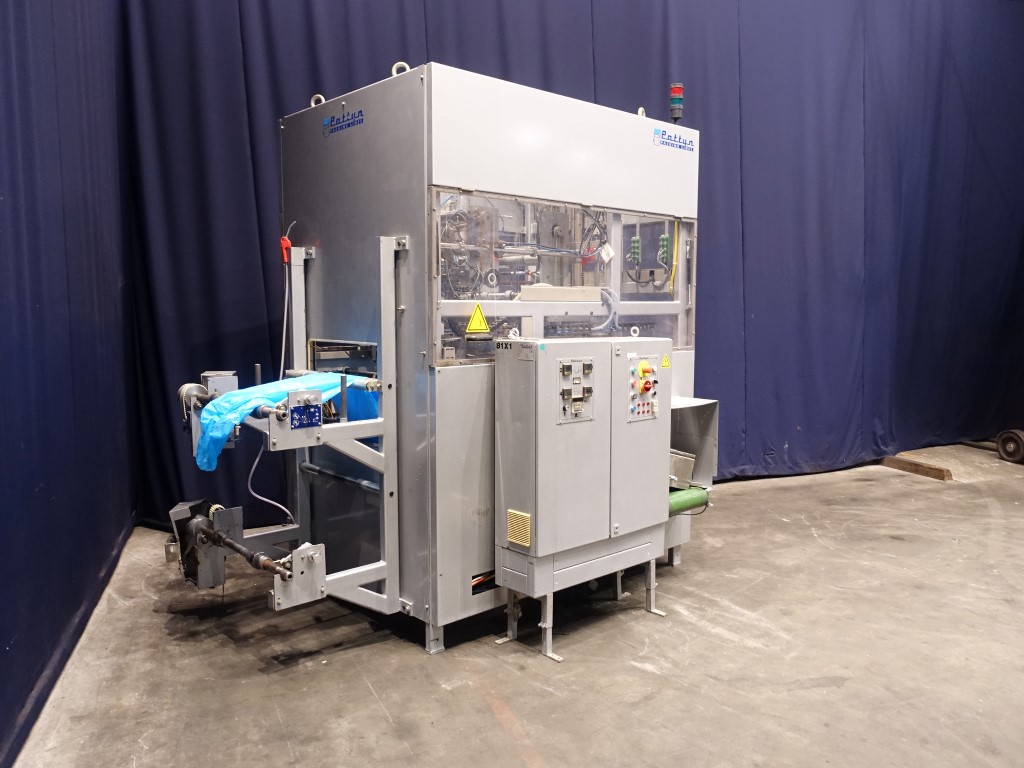

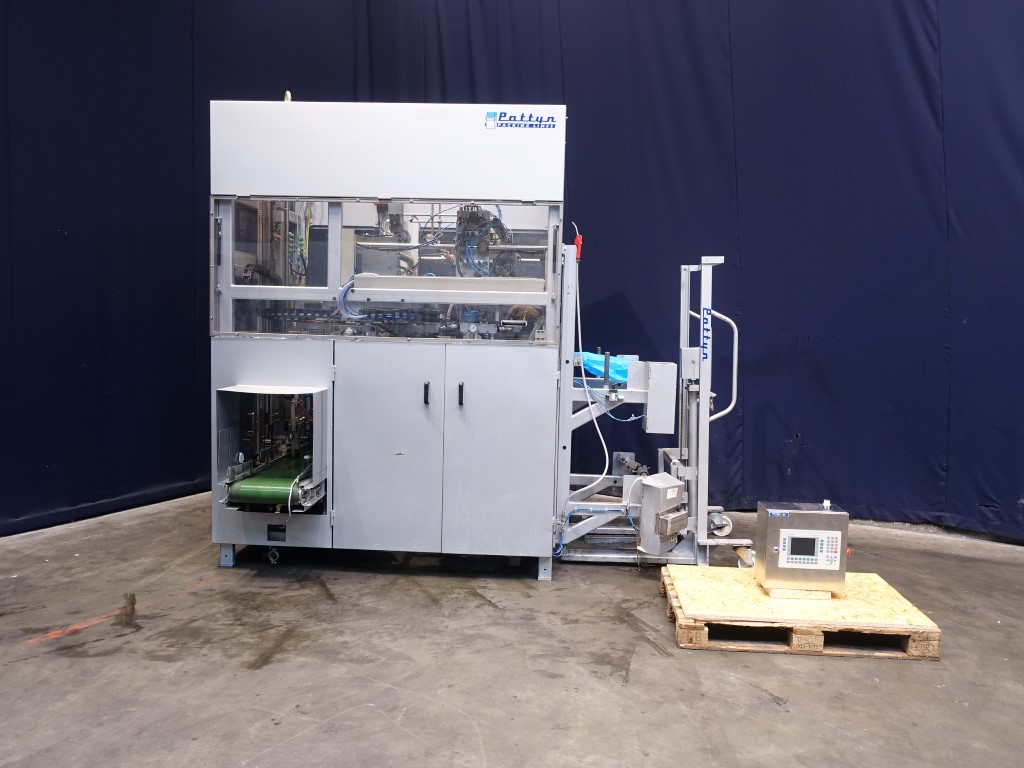

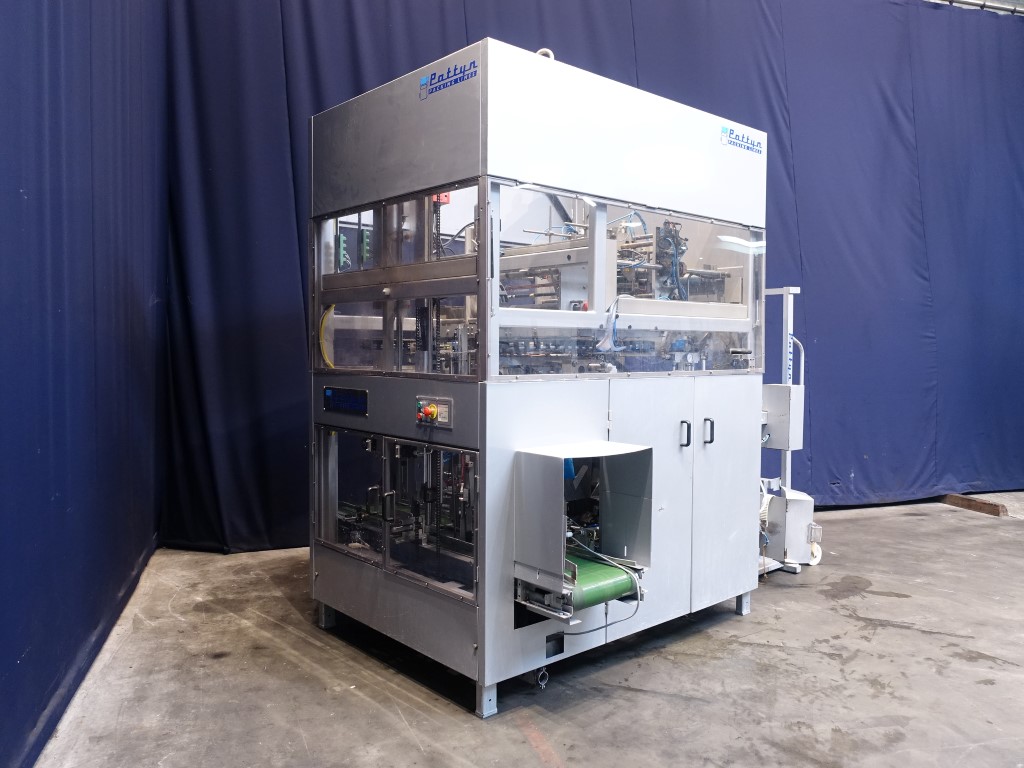

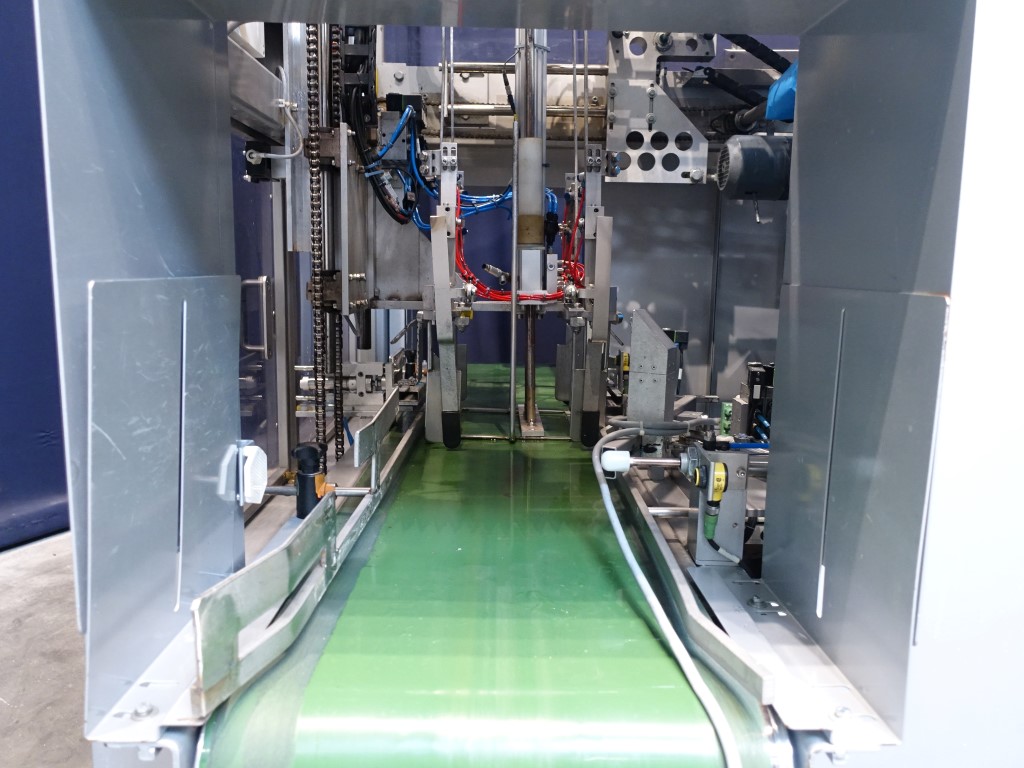

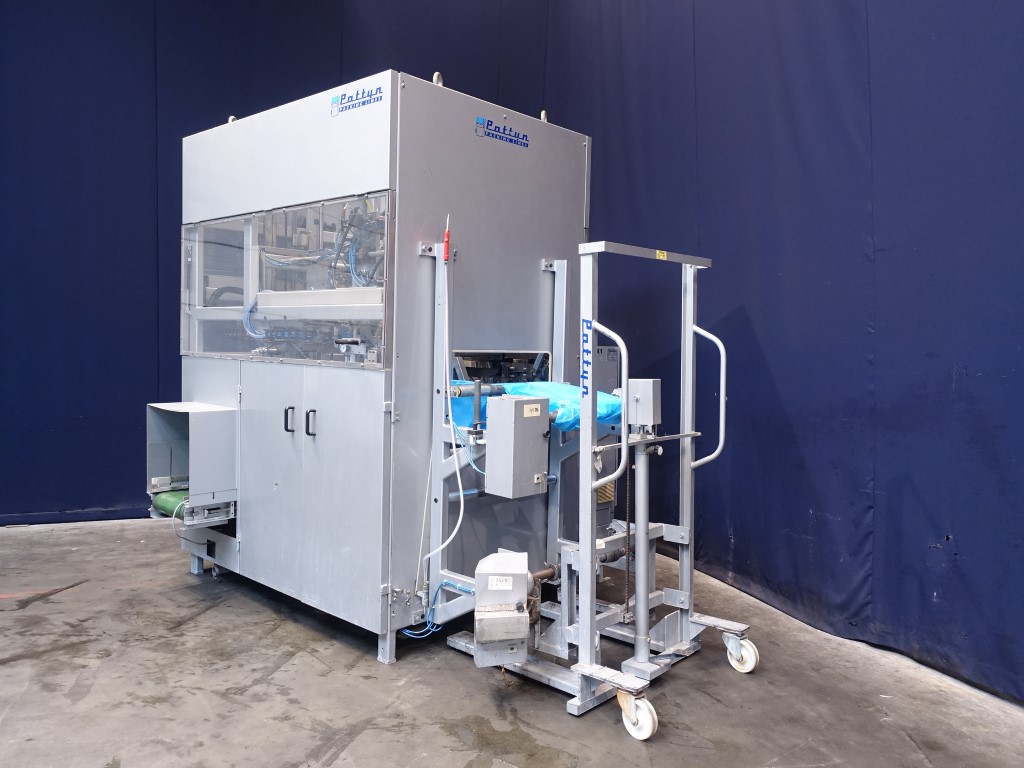

Bag in box insert machine. Forming of a bag from the roll of tube foil. Sealing jaws on a 45 ̊ angle, special to make bags for liquid and semi liquid products like liquid Margarine. Easy adjustment of the bag length, according to box heigth. Conveyor for infeed of preformed boxes. Conveyor stops. Box size min: 300 x 200 x 200 mm, max: 400 x 300 x 500 (with flaps up) mm. Inserting the bag into the box and a overlay over all sides. Outfeed of the box with bag by starting the conveyor. Capacity: 10 - 12 boxes/minute. Foil material: Polyethyleen (PE). Compressed air: 6 bar - 60 NL/box. Electrical: 3x 400V - N - 50 Hz - 3 kW. Sealing temperature: max 180 °C. Including controls and documetation in Dutch language. Box with several spare parts (list available on request). Total dimensions: 280 x 210 x 300 cm. Weight: 1.800 kg. Was working in combination with STN14513 and STN14518.
